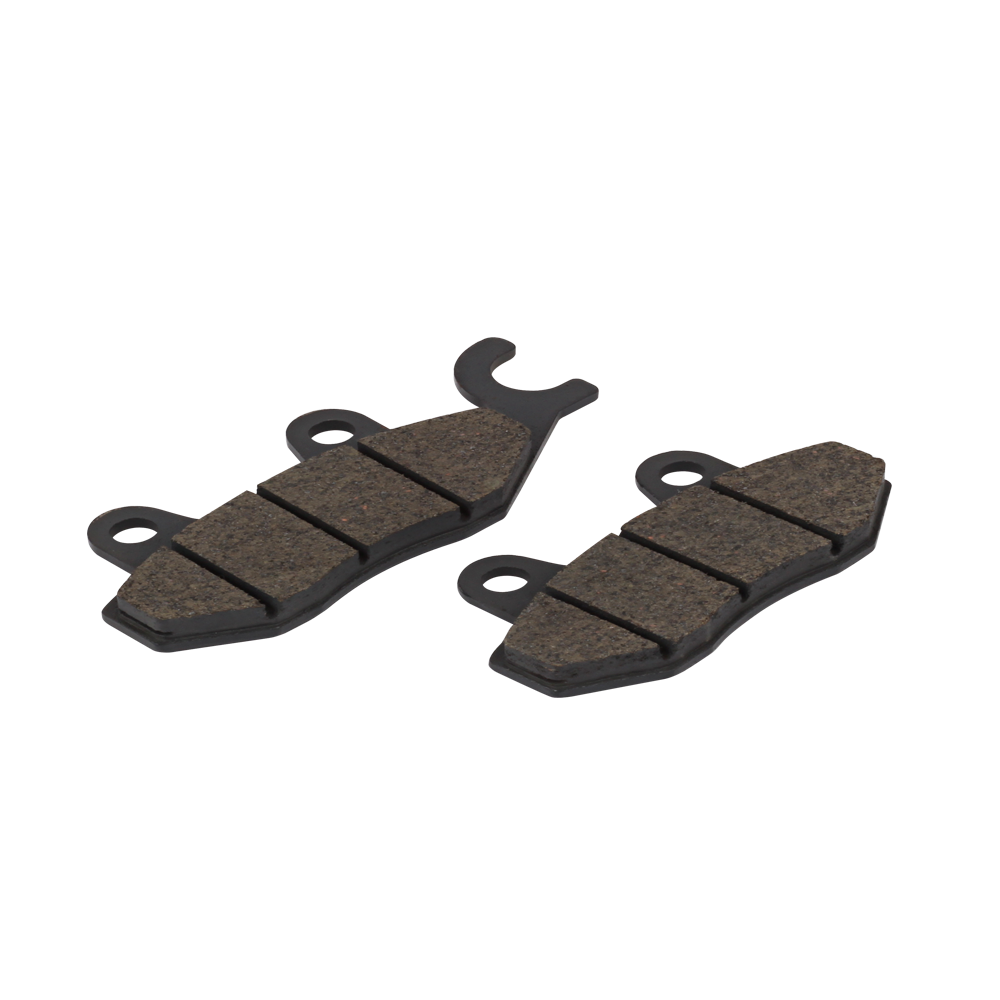

Brake pad
Brake pad - Image 2

Brake pad

Designed and tested for performance-oriented use, our brake pads are the ultimate upgrade for any braking system. Our friction material provides superior quality to our brake pads, making them better than the rest on the market.

Characteristics:

  • They ensure the ideal balance between safety and performance, while minimizing wear on the vehicle’s pads and discs.
  • Improved initial effectiveness (no intrusion required)
  • High wear resistance
  • Stable and balanced braking
  • It offers great cut resistance.
  • Low noise and vibration levels
  • Premium submerged coating: provides corrosion resistance for increased durability
  • High and stable friction levels
  • Made for rendering in extreme temperature ranges

Related products

  • Raw Material
  • Manufacturing
  • Evidence
Raw Material

Our brake pads are manufactured using a variant of Q-235 B. The coating on all these brake pads has a high metallic content, is asbestos-free, and environmentally friendly, along with smoother edges compared to others on the market. This semi-metallic material results in comfortable braking performance, increased wear resistance, minimal brake disc wear, improved pedal feel, and low noise levels. These features ensure efficiency on dry, wet, cold, or hot surfaces.

Parameter Details Elpra Chinese Product Advantages of Elpra
Raw material Metal Base High-grade steel base with chemical composition according to international standards Low-grade steel base with a chemical composition below international standards, thus increasing the cost We offer exceptional mechanical properties such as durability, comfort and longevity along with safe driving.
Friction lining Asbestos-free construction with special fiber material With asbestos formation Our friction material provides excellent quality, making our product superior to the rest on the market.
BOP (
Bought Parts)		 Friction Lining Home interior BOP
  • The more BOPs there are, the greater the chances of rejection.
  • Consistent quality and improved performance throughout its lifespan
Manufacturing

We manufacture a single grade of brake pad linings using synthetic materials blended with a specific proportion of metal flakes. Different pads utilize steel, iron, copper, and fiberglass. Our exquisite workmanship allows them to withstand temperatures up to 300°C with less wear, a longer lifespan, and excellent thermal and water absorption resistance. They are primarily used in the domestic OEM market and are exported overseas in large quantities.

Details Elpra Chinese Product Advantages of Elpra
Production technology Automated/semi-automatic press installation Semi-automatic or manual press By using fully automated press machines, we offer minimal tolerance level products with negligible rejection at the final stage.
Design Center facilities
for Research and
Development and tool curation 		 In-house design center, tool room and R&D center Not available in ordinary Chinese factories We have an exceptional aptitude for developing custom formulations for friction products. For molded products, we have an in-house tool room with integrated die design and manufacturing facilities, enabling fast turnaround times for our customers.
Molding Automated process Manual process Automatic molding results in relatively low wear under heavy-duty conditions and at the highest friction levels.
Powder coating. Internal installations.  Internal installations Not available We offer powder-coated brake pads with a smoother surface finish and edges compared to other brake shoes on the market.
Heat treatment Internal process Outsourced process in most factories Grain alignment to provide better raw material strength and reduce internal stress
Evidence

Our brake pads guarantee:

1. Safety: The adhesive ensures a good bond between the friction materials and the backplate under the toughest driving conditions.

2.  Stability: Advanced friction engineering to ensure stable performance over a wide temperature range.

3. Durability: good load capacity and braking power for longer periods in different environments and conditions.

4. Comfort: Better materials ensure a reduction in noise and vibration, making braking easier and more comfortable.

5. The finished brake pads are thoroughly checked and tested to ensure a 100% accurate fit before dispatch.

Parameter Details Elpra Chinese Product Advantages of Elpra
Testing Standards Incoming parts 100% inspection and testing Random / without evidence Committed to delivering the same product
quality/specifications in every batch
In progress Own installation
1. Composition test
2. Random dimensional control with three-axis
coordinate measuring machine 3. Friction coefficient test 4. Wear index test		 1. Visual test
2. On-demand test		 1. Standard parameters controlled in each process
. 2. The three-axis coordinate measuring machine
maintains a tolerance range of 0.002 mm
to 0.003 mm.
3. Low to medium coefficient of friction of ~0.33–0.40 .
4. Excellent wear resistance at low temperatures (<200°C).
Final inspection Checking fit with pneumatic pressure gauge, universal hydraulic/electronic test External agents Manual inspection It guarantees safe operation and adequate durability. We have an electronic and hydraulic universal testing machine (UTM) to test the tensile strength and compressive strength of the materials used in manufacturing.
FRICTION PERFORMANCE TEST REPORT
Metal Standard Rotation speed Indoor temperature Pressure
M8500 GB5763-1998 480rpm 15 degree Celsius 1225N
Temp Coefficient of Friction Sample thickness Average
thickness difference		 Wear index Friction force Result
Increase Decrease
1 2 3 4 5
Average
100 0.42 0.4
6.84 6.60 6.85 6.98 6.85
6.78 6.52 6.81 6.98 6.78
0.06 0.08 0.04 – 0.07
43 0.23 504.32 OK
150 0.4 0.42
6.78 6.52 6.81 6.98 6.85
6.70 6.47 6.76 6.97 6.74
0.08 0.05 0.05 0.01 0.04
46 0.24 499.6 OK
200 0.39 0.4
6.70 6.47 6.76 6.97 6.74
6.65 6.45 6.73 6.95 6.68
0.05 0.02 0.03 0.02 0.06
33 0.18 482.57 OK
300 0.38 0.44
6.65 6.45 6.73 6.95 6.68
6.63 6.39 6.68 6.91 6.63
0.02 0.06 0.05 0.04 0.05
40 0.22 479.16 OK
200 0.42 —
6.63 6.39 6.68 6.91 6.63
6.52 6.34 6.59 6.85 6.57
0.11 0.05 0.09 0.06 0.07
71 0.38 490.23 OK

Importance of the tests:

Wear testing is carried out to predict performance under wear and to investigate the mechanism of wear. Two specific reasons are as follows: –

  1. From a material point of view, the test is performed to evaluate the wear property of a material in order to determine if it is suitable for a specific wear application.
  2. The coefficient of friction is a value that shows the relationship between the frictional force between the brake pad and the brake disc. It is also used to determine the normal reaction between the objects involved.
