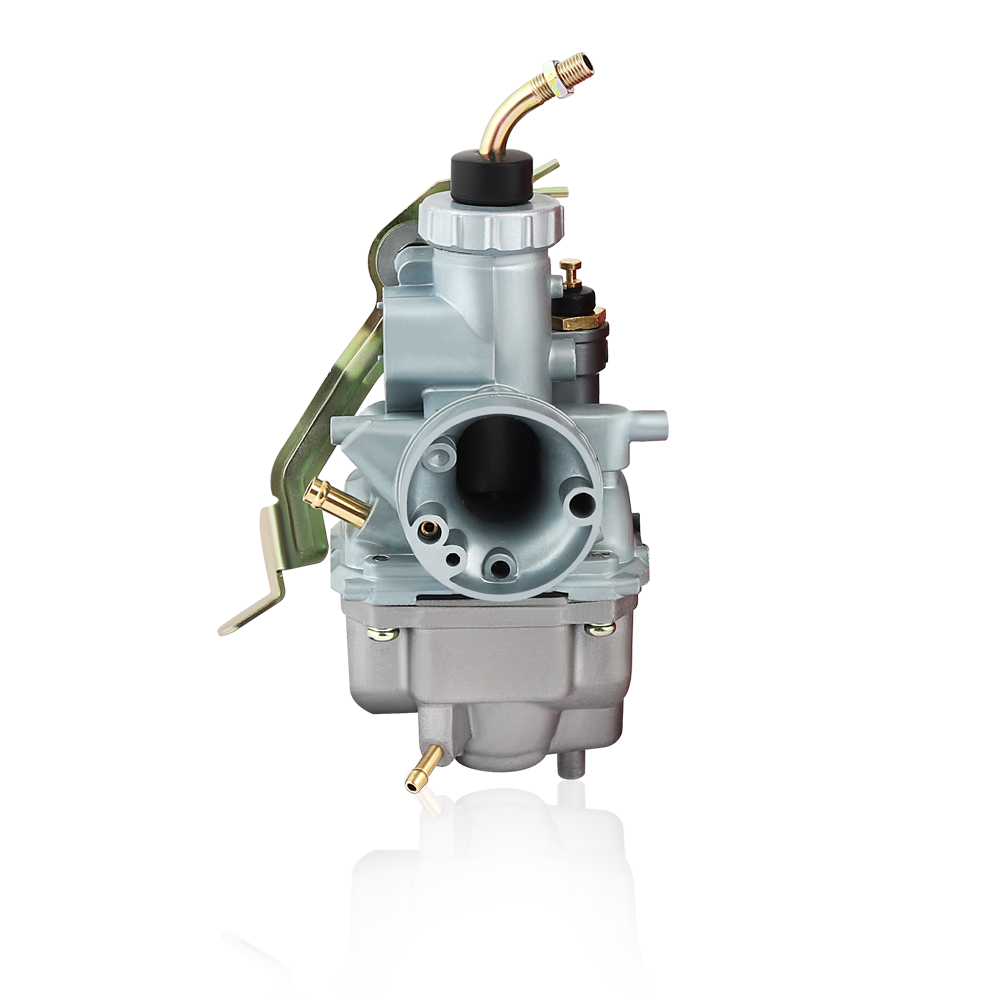

We manufacture high-performance carburetors that offer optimal quality.
Our strong commitment to remaining a quality-driven organization, coupled with innovative product development initiatives, ensures that our products are accepted and preferred by our customers worldwide. We derive our expertise and superiority from the highest quality and safety standards, which we consistently uphold.
We dream of leading the way to a better and safer future with our reliable and cost-effective carburetors.
Strengths
- Low fuel consumption
- Internal Quality Control
- Production capacity of ~100,000 units per month
- Adequate production time
- Simplified production processes
- Wide range of carburetors available
Characteristics
- Raw materials used: ADC-12 and Zamak
- 100% tested against fuel leaks
- Low fuel consumption
- Very stable operation
Related products
- Raw Material
- Manufacturing
- Evidence
ADC12, with its high copper content, simply put means exceptional durability and a long service life. ADC12 increases a material's strength. Aluminum and copper alloys, both cast and forged, respond to heat treatment and subsequent aging with increased elongation.
Raw material specifications
- Lightweight and structural material
- Corrosion resistant
- Withstands high temperatures
| Item | Parameter | Details | Elpra | Chinese Product | Advantages of Elpra |
|---|---|---|---|---|---|
| 1 | Purchased parts (BOP) | High-Gum Chewing Gum | Internal Process | outsourced process | In-house manufacturing ensures better quality control of the parts produced. |
| Throttle valve | Internal Process | outsourced process | |||
| Needle | Internal Process | outsourced process | |||
| 2 | Raw material | Body | High-grade ADC12 with 1.65% copper content / high-quality zinc | ADC12 substandard with a copper content of 0.5-0.8%, which is below international standards. | 1) Greater wear resistance
2) Long-term dimensional stability |
| JBOP | Sheet alloy | Alloy mixture | 1) Reduces wear and tear |
ADC-12 Composition
| Metal | Yeah | Faith | Cu | Mn | Mg | Neither | Zn | Sn | To the |
|---|---|---|---|---|---|---|---|---|---|
| % | 9.6~12 | 1.3 max | 1.5~3.5 | 0.5 max | 0.3 max | 0.5 max | 1 max | 0.3 max | Balance |
Another very important raw material used is zinc. The zinc alloy used to make carburetors is known as Zamak 3. It is the first choice when considering zinc for die casting for several reasons.
- Excellent balance of desirable physical and mechanical properties.
- Excellent moldability and long-term dimensional stability.
- Excellent finishing characteristics for plating, painting and chrome plating treatments.
- It achieves high levels of precision.
- It displays greater resistance to wear.
Zamak 3 composition:
| Metal | To the | CU | Mg | Faith | Pb | CD | Sn | Zn |
|---|---|---|---|---|---|---|---|---|
| % | 3.5~4.3 | 0.25 | 0.02~0.05 | 0.1 max | 0.005 max | 0.004 max | 0.003max | Balance |
Our carburetors are designed to mix the precise amount of fuel and air for proper engine operation. The ratio should be no more than 20:1 and no less than 8:1.
The ideal air-fuel ratio is 15:1. If there isn't enough fuel mixed with the air, the engine runs lean and won't function properly or could be damaged. If there's too much fuel mixed with the air, the engine runs rich and won't function properly or will produce a lot of smoke. We've achieved the perfect ratio. Therefore, we focus on the manufacturing process to prevent engine problems.

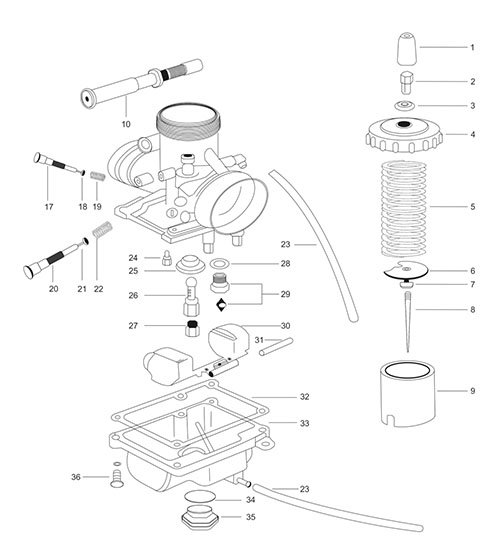

| Item | Description |
|---|---|
| 1 | Rubber cap |
| 2 | Cable Support |
| 3 | Cable support nut. |
| 4 | Upper mixing chamber |
| 5 | Spring, accelerator valve |
| 6 | Spring seat |
| 7 | O-ring needle |
| 8 | Accelerator value 1.5 |
| 9 | Starter plunger |
| 11-16 | N/A |
| 17 | Air regulating screw |
| 18 | O-Ring, Air regulating screw |
| 19 | Air regulating screw spring |
| 20 | Idle screw |
| 21 | idle screw O-ring |
| 22 | Spring, idle screw |
| 23 | 3mm ventilation hose |
| 24 | Chewing Gum |
| 25 | High-speed O-ring Gum |
| 26 | Needle 0-0 332 |
| 27 | Main hexagonal jet |
| 28 | Washer, |
| 29 | Needle(2.5) |
| 30 | Floating |
| 31 | Floating Bolt |
| 32 | Cuban Junta |
| 33 | Cuba |
| 34 | O-Ring drain plug |
| 35 | Drain Plug |
| 36 | 4 x 16mm tub screw |
| 37 | Upper board (not shown) |
| Item | Parameter | Details | Elpra | Chinese Product | Advantages of Elpra |
|---|---|---|---|---|---|
| 1 | Manufacturing process | Die casting | Internal process | outsourced process | In-house manufacturing ensures better quality control of the parts produced. |
| Small parts | Mostly internal | outsourced process | Rigorous control over small parts | ||
| Ensemble | Internal process | Internal process | Quality Product |
We emphasize perfection and on-time delivery. Every piece is manufactured to the highest quality thanks to our numerous controls and tests at every stage of production.
Performance test
100% production yield is verified
| Item | Parameter | Details | Elpra | Chinese Product | Advantages of Elpra |
|---|---|---|---|---|---|
| 1 | Testing standards | Material composition test | Internal process through spectrograph | Without evidence | All tests are performed according to the GB standard to guarantee a defect-free product |
Materials testing
| Item | Parameter | Details | Elpra | Chinese Product | Advantages of Elpra |
|---|---|---|---|---|---|
| 1 | Testing standards | Fuel leak | Internal process | It requires a motor to perform the tests. | All tests are performed according to the GB standard to guarantee a defect-free product |
Proof of loss
Each carburetor is tested to check for oil leaks.
| Item | Parameter | Details | Elpra | Chinese Product | Advantages of Elpra |
|---|---|---|---|---|---|
| 1 | Testing standards | Fuel leak | Internal process | Partial | All tests are performed according to the GB standard to guarantee a defect-free product |
